Industrial Bag Conveyor Metal Detector Packaging Line Metal Detector with Alarm
This industrial bag conveyor metal detector utilizes advanced digital signal processing technology to ensure stable detection performance, effectively identifying common metal contaminants such as ferrous metals, non-ferrous metals, and stainless steel particles. Upon detecting a contaminated package, the packaging line digital metal detector triggers an alarm or automatically rejects the non-compliant product. Features such as touchscreen control, product parameter storage, signal monitoring, automatic rejection, alarm functions, and production statistics further enhance operational convenience. If you are interested in our products and services, please keep free to contact us for a quote.

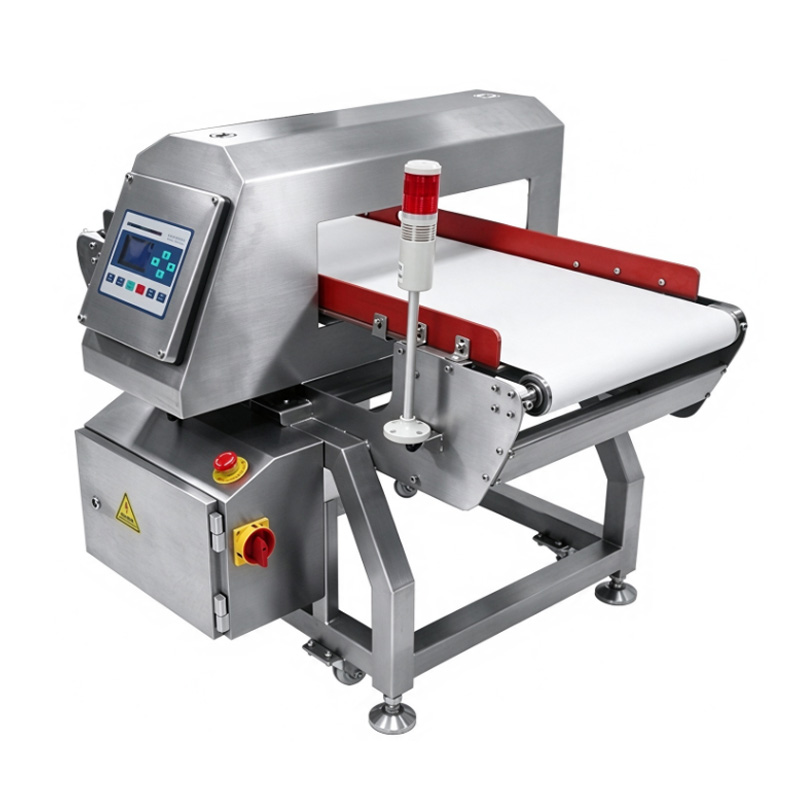

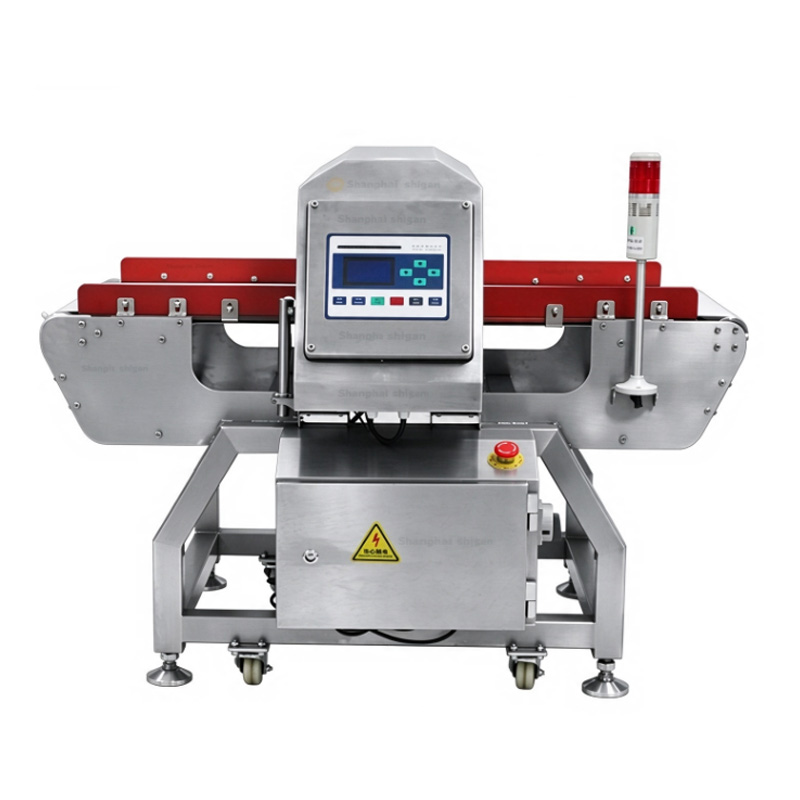

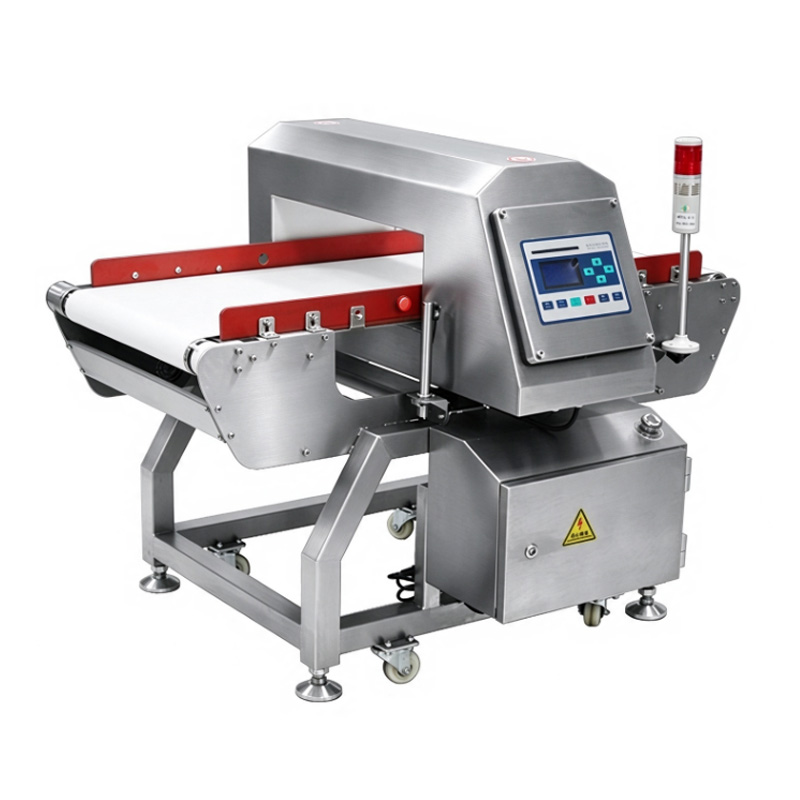

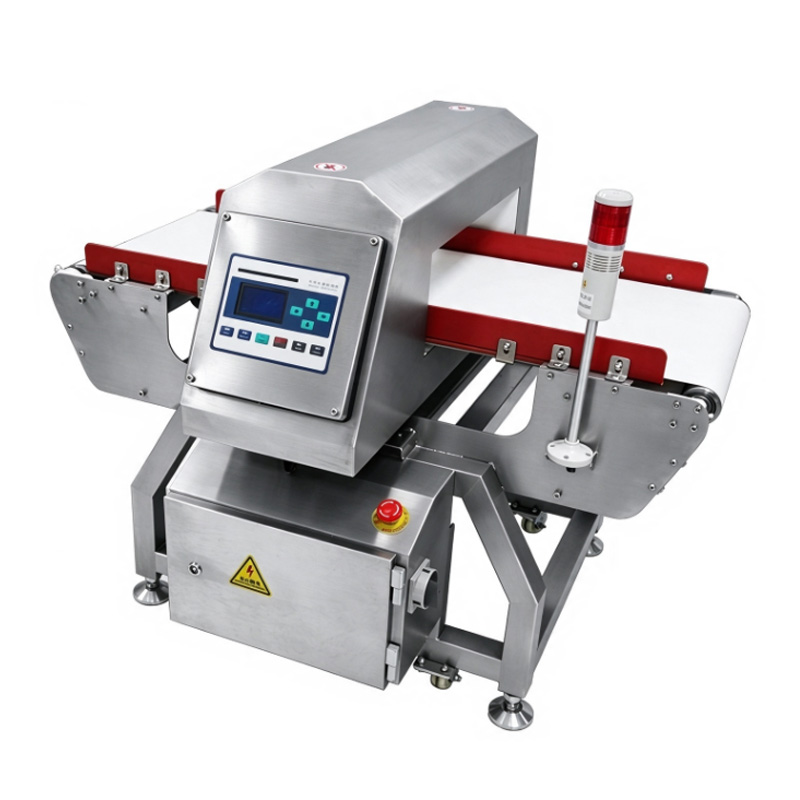

Industrial bag conveyor metal detector photos
| Aperture height | Standard sizes include 100, 120, 150, and 200 mm; custom heights are available upon request (sensitivity decreases as aperture height increases) |
| Aperture width | 500 mm |
| Machine body material | All stainless steel construction |
| Sensitivity | Ferrous spheres (Fe) φ0.8 mm–φ2.5 mm; non-ferrous metals (e.g., SUS304, copper, aluminum) ≥ φ2.5 mm |
| Power supply | 220V, 50Hz |
| Power consumption | 120W |
| Alarm method | Audible and visual alarm with automatic stop |
| External dimensions (L x W x H) | 1600 x 840 x 1005 mm |
| Weight | 200 kg |
| Protection Grade | Ip65 |
Industrial Bag Conveyor Metal Detector Packaging Line Metal Detector with Alarm
1. Continuous inline metal detection for automated production lines
2. Detection of ferrous, non-ferrous, and stainless-steel contaminants
3. Suitable for bags, pouches, sacks, and flexible packages
4. Automatic rejection of contaminated products
5. High-speed inspection for industrial packaging operations
6. Digital controls for convenient parameter adjustment
7. Stainless-steel construction options for demanding environments
8. Integration with upstream and downstream conveyor equipment
9. Reduced dependence on manual contamination inspection
10. Improved product quality and production-line control
The industrial bag conveyor metal detector can be flexibly configured to suit specific production environments, conveyor belt widths, product dimensions, package weights, and production line speeds. Please contact us to obtain a customized industrial conveyor-style metal detection solution.
This industrial bag conveyor metal detector is suitable for various bagged products—including small sachets, large bags, and flexible packaging—across industries such as food ingredients, frozen goods, snacks, cereals, powders, pet food, agricultural produce, chemicals, and pharmaceutical raw materials.
Industrial Bag Conveyor Metal Detector Packaging Line Metal Detector with Alarm
- Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
- After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
1. Warranty: Our packaging machines come with a 12-month warranty. Most components (PLC, servo controllers, servo motors, touch screens, pneumatic cylinders) are cover by a free replacement warranty.
2. After-sales Service: One-year warranty and lifetime maintenance support.
3. Technical Support: We provide technical consultation, specifications and drawings, customized design solutions, and technical troubleshooting before the order is place.
4. Operational Training: We welcome customer technicians to visit our factory to learn the operation process, take photos, and record videos.
