Integrated Metal Detector and Checkweigher System for Pet Food Safety
This integrated metal detector and checkweigher for pet food, designed specifically for cat food packaging, combines precise weight verification with advanced metal contaminant detection capabilities. It accurately checks package weights while simultaneously detecting various metal contaminants, such as ferrous metals, non-ferrous metals, and stainless steel particles. Engineered for continuous industrial production, the pet food metal detector and checkweigher unit features a user-friendly touchscreen interface that facilitates easy parameter adjustment and reliable data management. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

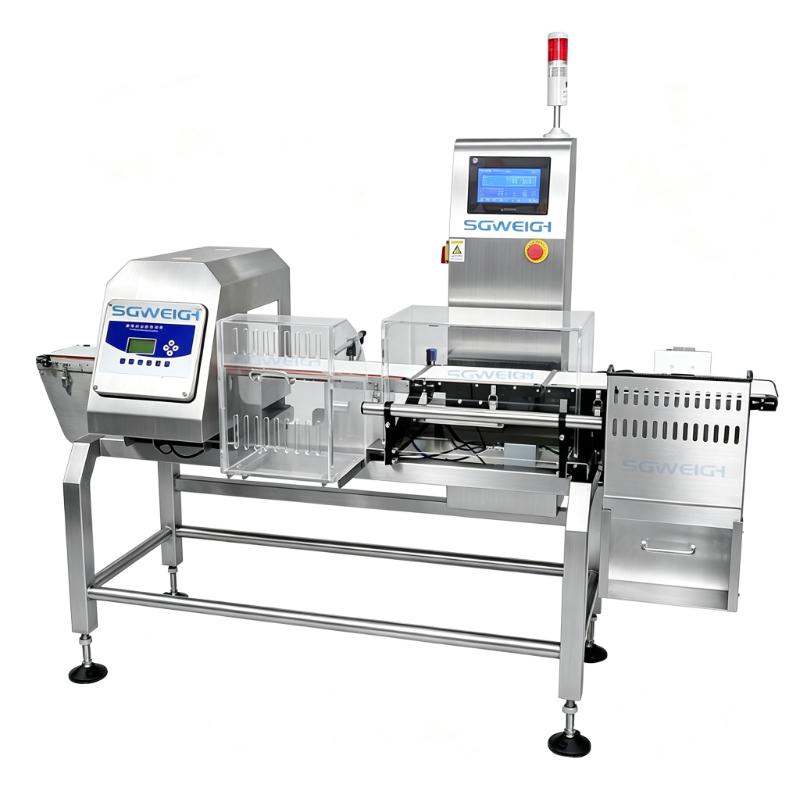

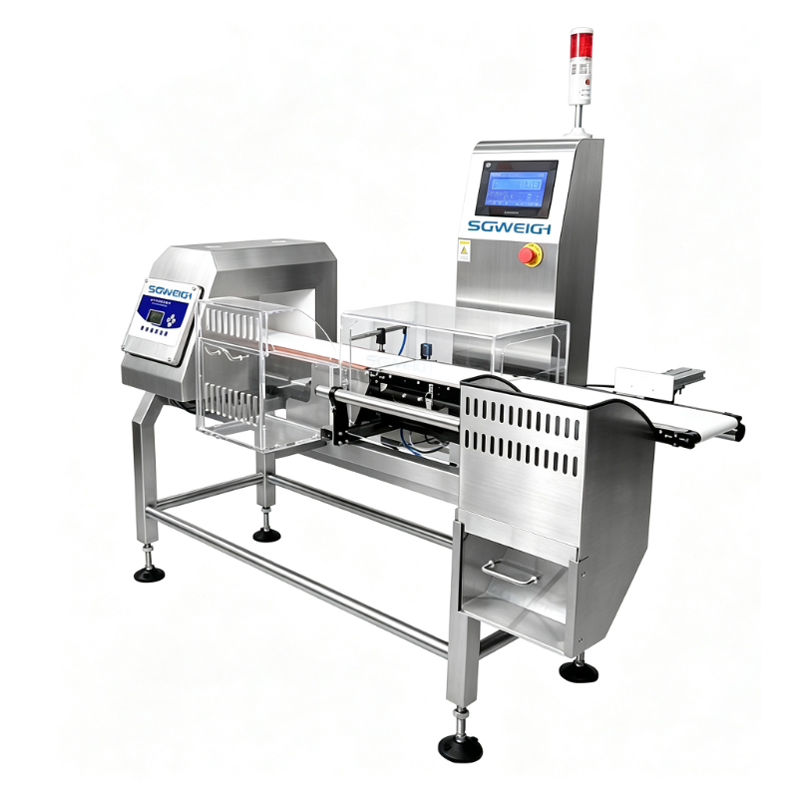

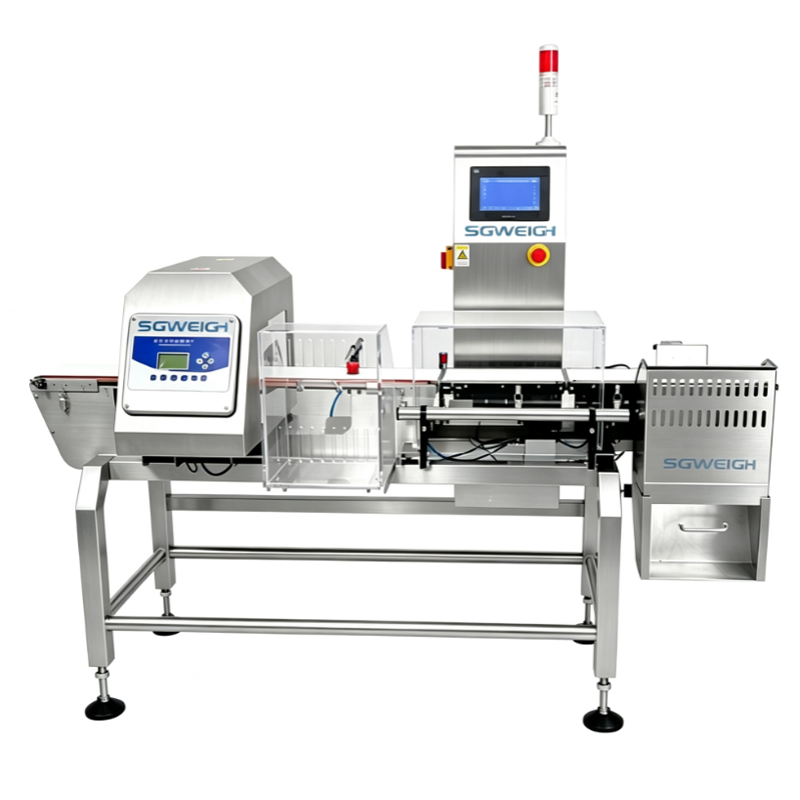

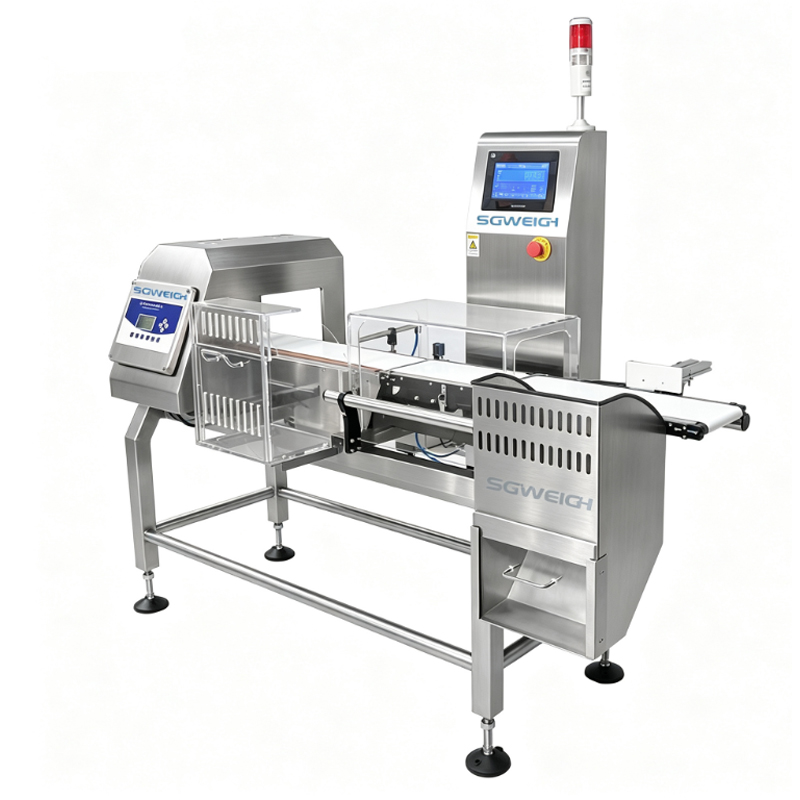

Integrated metal detector and checkweigher for pet food photos
1. Compact system integrating a checkweigher and a metal detector
2. High-precision dynamic weight inspection
3. Detects ferrous metals, non-ferrous metals, and stainless steel contaminants
4. Automatic rejection system for non-conforming products
5. Suitable for high-speed, in-line inspection in continuous production
6. User-friendly touchscreen interface
7. Supports storage of multiple product parameters and recipe management
8. Stainless steel construction compliant with food hygiene standards
9. Real-time production data collection and report generation
10. Reliable performance with low maintenance requirements
Integrated Metal Detector and Checkweigher System for Pet Food Safety
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
It is suitable for a wide range of cat food packaging formats—including stand-up pouches, cans, flexible bags, and cartons—and accommodates various dry and wet cat food products.
With extensive experience in integrated metal detector and checkweigher for pet food manufacturing, we offer cost-effective, in-line metal detecting and checkweighing solutions tailored to your specific operational needs. Please feel free to contact us at any time.
Integrated Metal Detector and Checkweigher System for Pet Food Safety
Packaging:
1: Lubricate the drive mechanism
2: Dismantle the machine into modules
3: Wrap modules in plastic film
4: Pack modules into cartons
5: Apply shipping marks
We can accommodate any special packaging requirements you may have.
12 Months Guarantee
★ 12 months free main parts replacement (Please return damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized according to your product’s features, your workshop environment, or your production line.
