Precision Inline Glass Bottle Rotary Checkweigher High-Quality Checkweigher
This precision gass bottle rotary checkweigher employs intelligent dynamic weighing technology, enabling precise weighing of glass bottles during high-speed production. Its rotary weighing structure ensures smooth product handling and stable bottle movement, minimizing vibration and improving the weighing reliability of fragile glass containers during continuous operation. This high-quality automatic rotary checkweigher offers flexible configuration options for fast and accurate online weight detection of bottles of various sizes and packaging formats. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

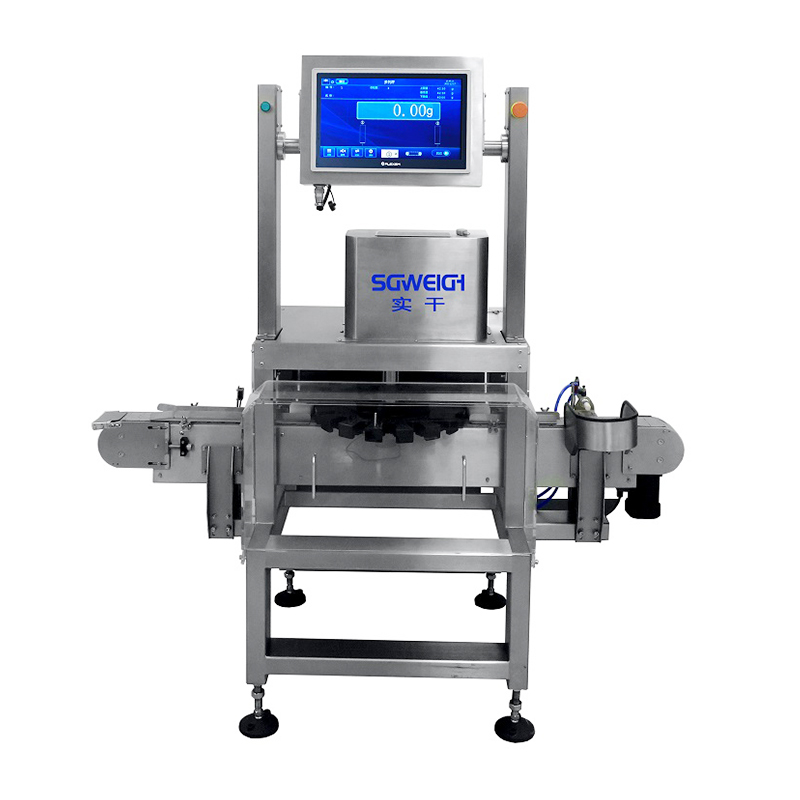

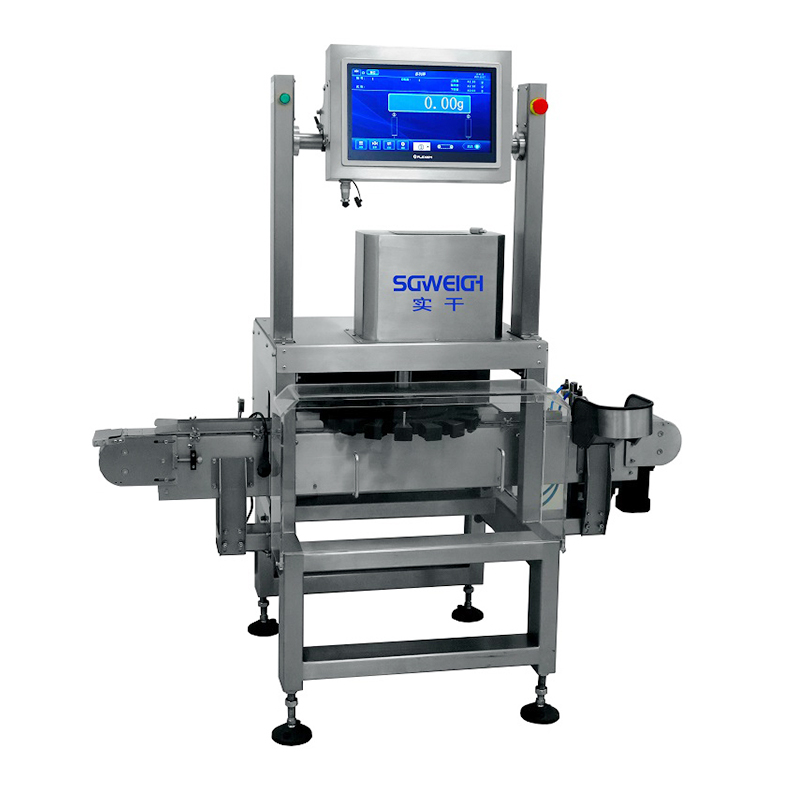

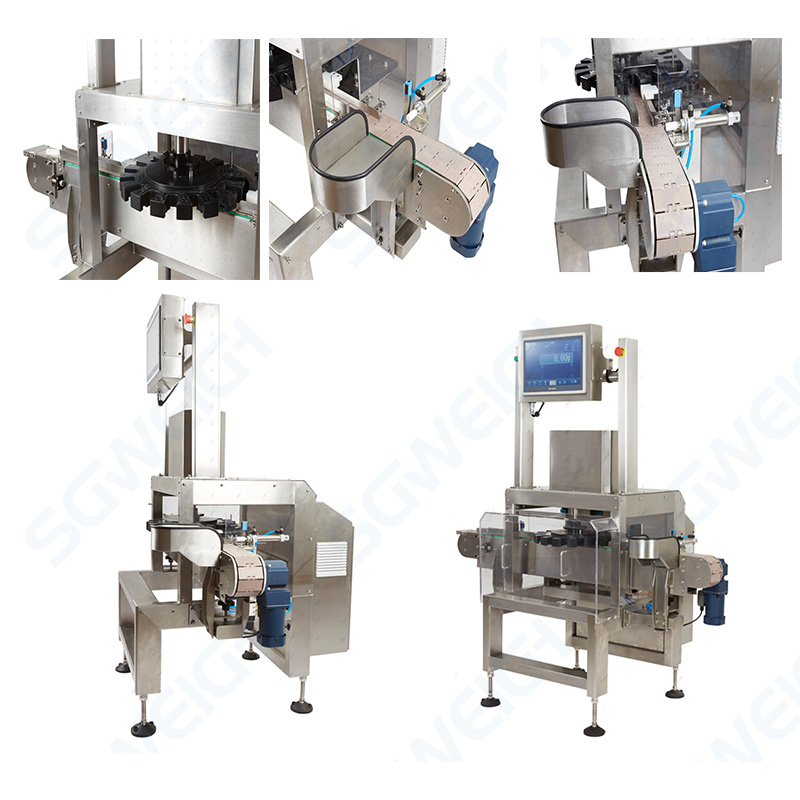

Precision gass bottle rotary checkweigher photos
Model: SG-Z1
Weighing Range: 5-300g
Minimum Graduation: 0.01g
Sorting Speed: Maximum 50 pieces/minute (single channel)
Conveyor Speed: 20-100m/min
Operation Method: Touchscreen Operation
Conveyor Direction: From left to right when facing the touchscreen
Rejection Method: Air blow rejection/Push plate rejection
Belt Height from Ground: 750±50mm (customizable upon request)
Machine Structure: Stainless Steel (SUS304)
Power Supply: 220V 50-60HZ
Power Consumption: Approx. 300W
Wind Protector: Thick acrylic (to prevent airflow interference)
Operating Environment: Temperature: 0℃～40℃, Humidity: 30%～95%
Note: The detection speed and accuracy will vary depending on the properties of the products being tested and the operating environment. Actual testing shall prevail.
1. Gentle rotary handling prevents bottles from tipping over or breaking.
2. High throughput to meet ever-increasing production demands.
3. Real-time weight analysis automatically filters out underfilled or overfilled products; an automatic rejection system ensures only qualified bottles pass through.
4. Supports a wide range of glass, PET, and plastic bottle sizes.
5. Sanitary stainless steel construction with a small footprint.
6. User-friendly touch interface for quick setup and adjustments.
7. Data logging function for continuous quality auditing.
8. Long-term stable operation with minimal maintenance.
The precision gass bottle rotary checkweigher shown may not meet your requirements. We have professional technicians who can provide customized solutions based on the user’s product characteristics and application scenarios.
Precision gass bottle rotary checkweighers are widely used in industries such as beverage manufacturing, pharmaceutical production, cosmetic packaging, food and condiment processing, and health product bottling. Examples include beverage glass bottles, liquid medicine bottles, cosmetic bottles, sauce and condiment bottles, health product containers, and wine and syrup bottles.
Precision Inline Glass Bottle Rotary Checkweigher High-Quality Checkweigher
Precision Inline Glass Bottle Rotary Checkweigher High-Quality Checkweigher
The entire machine is double-layered.
Pre-packaging uses plastic bags for transporting the entire machine, with key components protected by foam plastic.
Engineering packaging uses sturdy polyethylene wooden crates that meet the import standards of various countries.
1. Warranty: Our packaging machines have a 12-month warranty. Most parts are replaced free of charge under warranty (PLC, servo controller, servo motor, touch screen, cylinder).
2. After-sales service: One-year warranty, lifetime maintenance.
3. Technical support: We will provide technical consultation, drawings, specifications, customized solutions, and analysis and resolution of technical problems before customers place an order.
4. Operation training: We welcome customers’ technicians to come to our factory to learn the operation process, take photos, and record videos.
