Pharmaceutical Metal Detector for Aluminum Foil Bags Inline Metal Detector
Utilizing advanced magnetic field detection technology, the pharmaceutical metal detector for aluminum foil bags overcomes the challenges of metallization and aluminum-based packaging detection, accurately identifying ferromagnetic metallic contaminants in sealed aluminum foil bags, blister packs, flexible packaging bags, and pharmaceutical packaging. This aluminum foil bags inline metal detector continuously monitors products and automatically rejects contaminated packaging without interrupting the production process. You are welcome to contact us at any time for quotation.
Pharmaceutical metal detector for aluminum foil bags pictures
Type: SG-JH-350
Belt width:350mm
Belt speed:10-60m (adjustable); Stepless speed regulation
Detection height：H30mm-150mm (Highest 150mm )
Metals that can be detected: Fe, SUS304(magnetic material)
Frequency: Low frequency
Waterproof level: IP66
Max product weight: 3kg
Deadweight of machine: 85kg

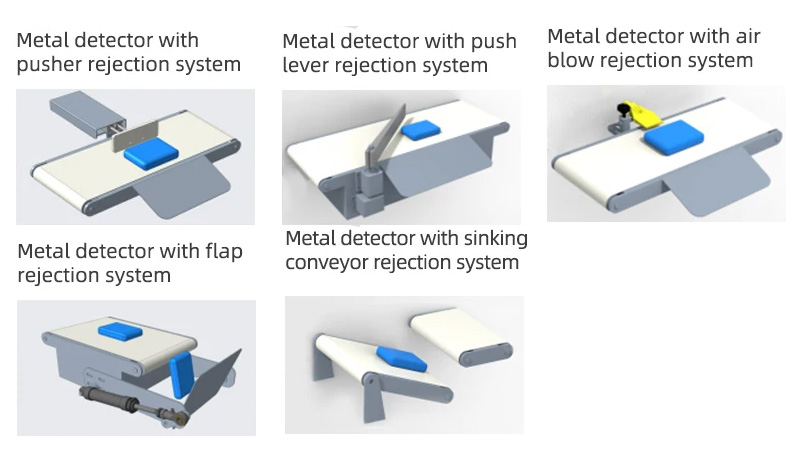

Rejection way: Air blow, drop, push plate, lever(Need order separately)
The pharmaceutical metal detector for aluminum foil bags shown may not meet your requirements. SGWEIGH can tailor a machine to meet your specific needs and scenarios, satisfying your individual requirements in terms of function, performance, and appearance.
1. Precision Metal Detection: Detects ferrous, non-ferrous metals, and stainless steel contaminants.
2. Non-invasive Design: Scans aluminum foil packaging without damaging the pharmaceutical product inside.
3. High-Speed Operation: Suitable for fast-paced pharmaceutical production lines.
4. Automated Rejection System: Immediately rejects contaminated products, preventing recalls.
5. Data Logging and Traceability: Stores test results for compliance and auditing.
6. User-Friendly Interface: Touchscreen control for easy setup and monitoring.
7. Compact, Space-Saving Design: Ideal for congested production environments.
8. Durable Construction: Stainless steel housing meets GMP and FDA standards.
9. Reliable Continuous Operation: Maintains accuracy in 24/7 production.
10. Versatile Applications: Compatible with various aluminum foil packaging pharmaceutical sizes.
Pharmaceutical Metal Detector for Aluminum Foil Bags Inline Metal Detector
The pharmaceutical metal detectors for aluminum foil bags have a wide range of applications and can be used in many industries and fields, such as the food industry, pharmaceutical industry, cosmetics industry, plastics and rubber industry, and textile industry, to check whether there are metal fragments or impurities in raw materials, semi-finished products and finished products, so as to prevent metal contamination from threatening food safety.
Pharmaceutical Metal Detector for Aluminum Foil Bags Inline Metal Detector
1. Waterproof PO film + wooden crate
1) Dust removal and cleaning
2) Lubrication of drive components
3) Disassembling the machine into modules
4) Wrapping modules with plastic film
5) Packing modules into plywood crates
6) Marking the crates with shipping marks
2. Packaging according to customer requirements.
1. Pre-sales Consultation
We will help you customize a suitable digital metal detection solution based on your requirements and specific circumstances.
2. Installation Service
We will provide an installation and operation manual and online 24/7 technical guidance. Our machines are very easy to install.
3. Maintenance Service
We provide long-term maintenance services, providing any repair parts free of charge during the warranty period, and charging only after the warranty expires.
4. Staff Training
We provide free technical training for our customers to fully master the correct product maintenance techniques.
5. Customer Service
We design customized production lines for customers based on specific metal detection factors, such as product output, packaging methods, and factory area.
