Incline Conveyor Metal Detector for Processing Lines Online Metal Detector
The incline conveyor metal detector for processing lines design enables seamless inspection of bulk materials, granules, powders, and packaged products as they move upwards in the production process. Sensitive detection technology identifies ferrous, non-ferrous, and stainless steel contaminants. This online incline conveyor metal detector features intelligent signal processing and adjustable sensitivity settings, supports continuous inspection, and its inclined design optimizes floor space. If you are interested in our products and services,please keep free to contact us for a quote.

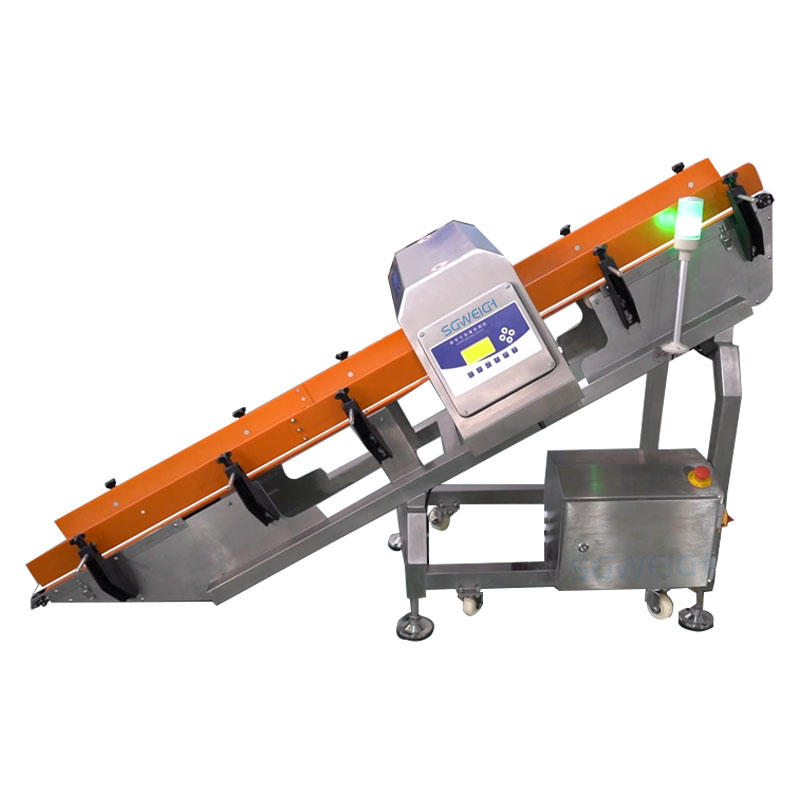

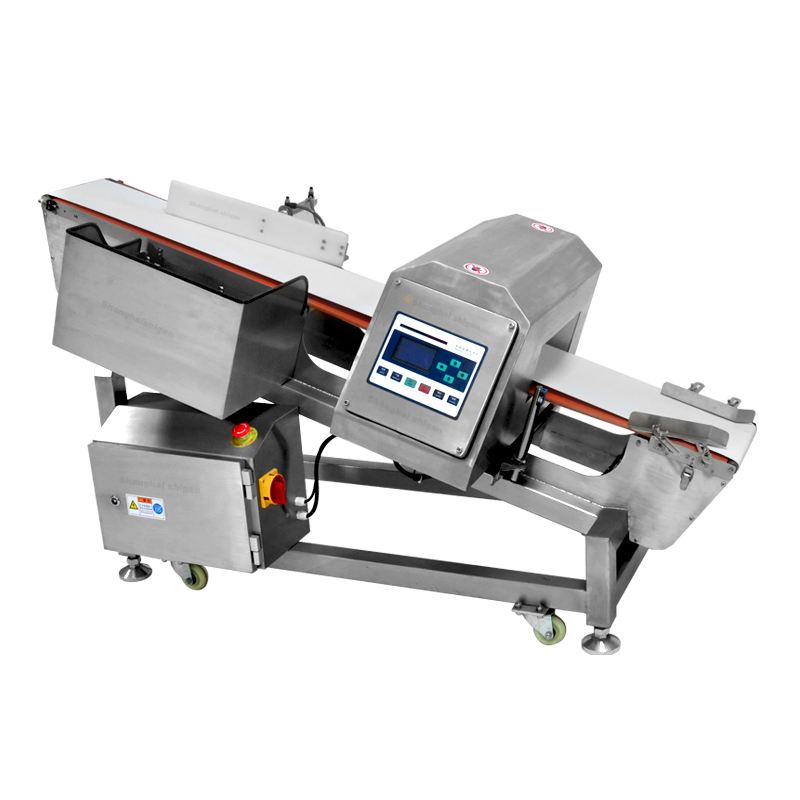

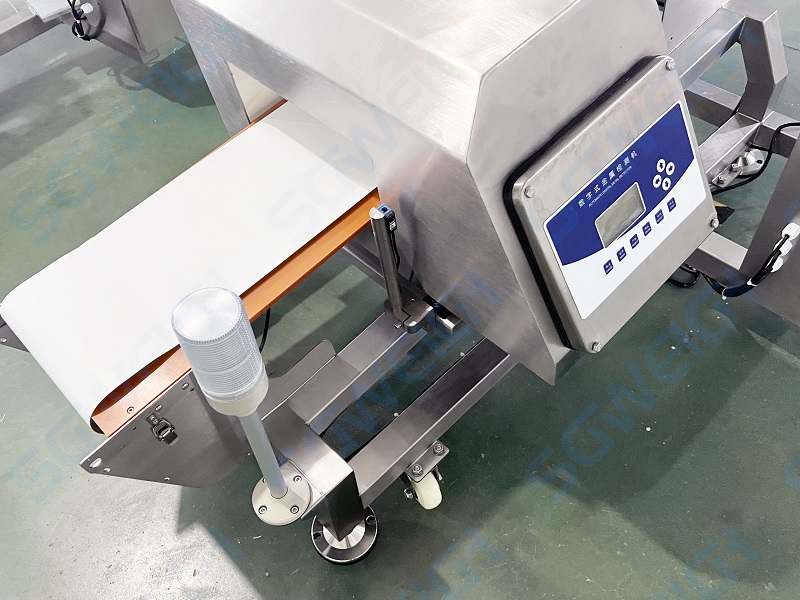

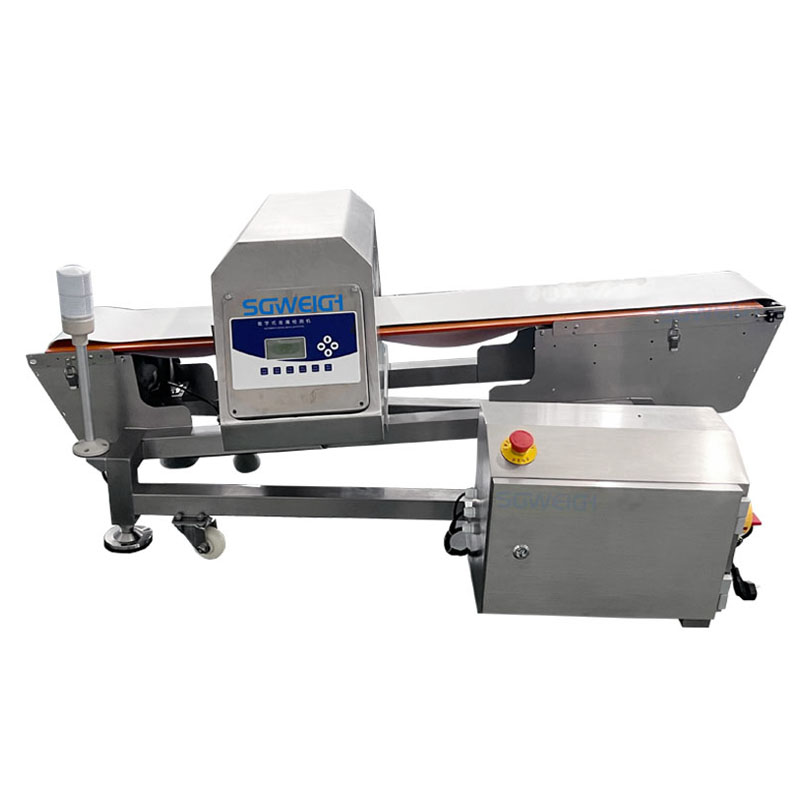

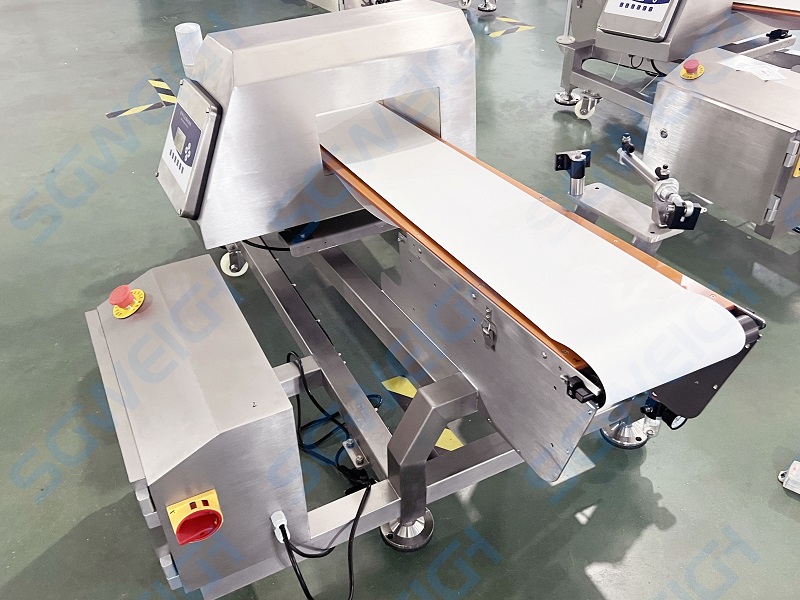

Incline conveyor metal detector for processing line photos
Model Category: Standard Model
Detection Channel Width (mm): 300-400 (Customizable)
Detection Channel Height (mm): 100 (Customizable)
Detection Sensitivity: Iron ball diameter (φmm): 0.6-0.8; 304 stainless steel diameter (φmm): 1.2; Copper, aluminum, lead, and other non-metallic materials (φmm): 1.2
Alarm Method: Buzzer and LED audible and visual alarm with automatic shutdown
Material: 304 Stainless Steel
Machine Dimensions: 1520*860*930MM
Machine Weight: Approx. 200㎏
Power Supply: AC220V 50-60Hz
Power: Approx. 140W
Load Capacity: 5-25KG
Conveying Speed: 24m/min (50Hz)
Incline Conveyor Metal Detector for Processing Lines Online Metal Detector
1. Employs a balanced principle for higher reliability.
2. Phase adaptive technology adapts to different products, effectively eliminating product effects.
3. Combines DSP and microprocessor to process test data, improving testing efficiency.
4. The instrument handles multiple operations to prevent transmission and reception errors. Parameter adjustment is convenient.
5. Large LCD screen with multiple language options including Chinese and English, selectable by the user.
6. Features a self-learning function, automatically learning and storing product characteristics. Simple operation, requiring no manual adjustment of technical parameters.
7. Can store test data for over 100 products.
8. Automatic rejection system improves production efficiency and saves labor costs.
Incline conveyor metal detector manufacturers offer a wide range of customization options to tailor the design, functionality, and specifications of metal detection systems to meet the specific needs and requirements of OEM/ODM customers.
Customization options may include conveyor configuration, rejection mechanisms, detection capabilities, software functions, user interface, and integration features.
Incline conveyor metal detector for processing line can be used to detect metallic impurities in chemicals, rubber, plastics, textiles, leather, synthetic fibers, and toys, as well as in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, and paper.
Incline Conveyor Metal Detector for Processing Lines Online Metal Detector
Packaging
Film pack inside, Wooden case outside
Shipping
- Upon receipt of payment, delivery date will be in 20-30 working days
- By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
1. Are you a manufacturer or a trading company?
We are a manufacturer with our own factory in Jiaxing, Zhejiang Province, and our business office is in Shanghai, China. SGWEIGH have independent departments for purchasing, production, processing, testing, packaging, storage, and transportation. We believe our team is one of the best in China.
2. What are your main products?
We specialize in automatic checkweighers, industrial metal detectors, and other related electronic products and machines.
3. Where are your main sales markets?
Our checkweighers and metal detectors are sold in dozens of countries and regions worldwide, including Europe, Asia, Africa, South America, and the Middle East, and have received strong support from customers everywhere.
4. What is your after-sales policy?
Customer first is our consistent principle. The normal warranty period for all our products is 12 months. We will provide necessary feedback or video guidance for daily issues. 7/24 online technical support.
5. Do you accept customer logos and customizations?
We accept all kinds of customizations and logos for all customer products.
