High Precision Pharma Checkweigher for Capsule Tablet with Automatic Rejection
The pharma checkweigher for capsule tablet is a high-precision dynamic weighing solution designed to verify the weight of individual capsules, tablets, softgels, and various pharmaceutical products during high-speed production. Utilizing ultra-sensitive load cell technology and intelligent weighing algorithms, the high precision capsule tablet checkweigher accurately detects—with 100% coverage—underweight, overweight, damaged, or defective products and automatically rejects them from the production line. You are welcome to contact us at any time for quotation.

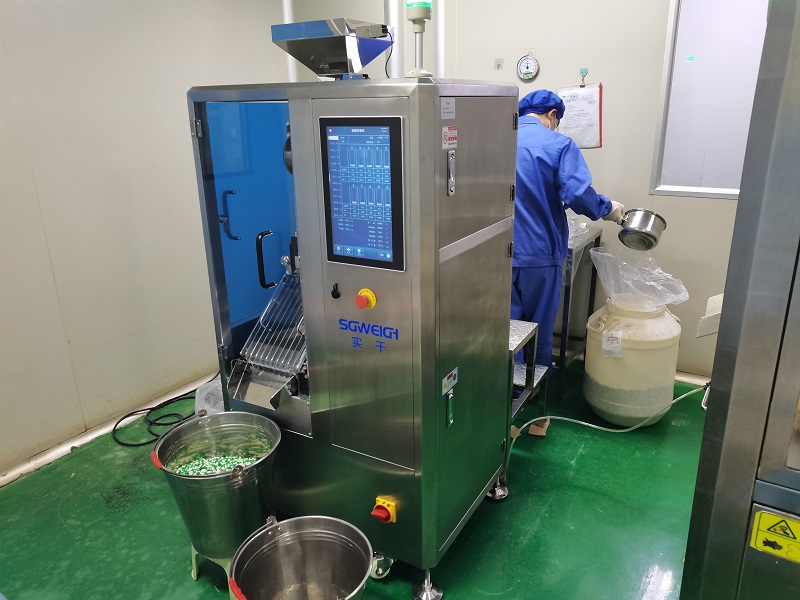

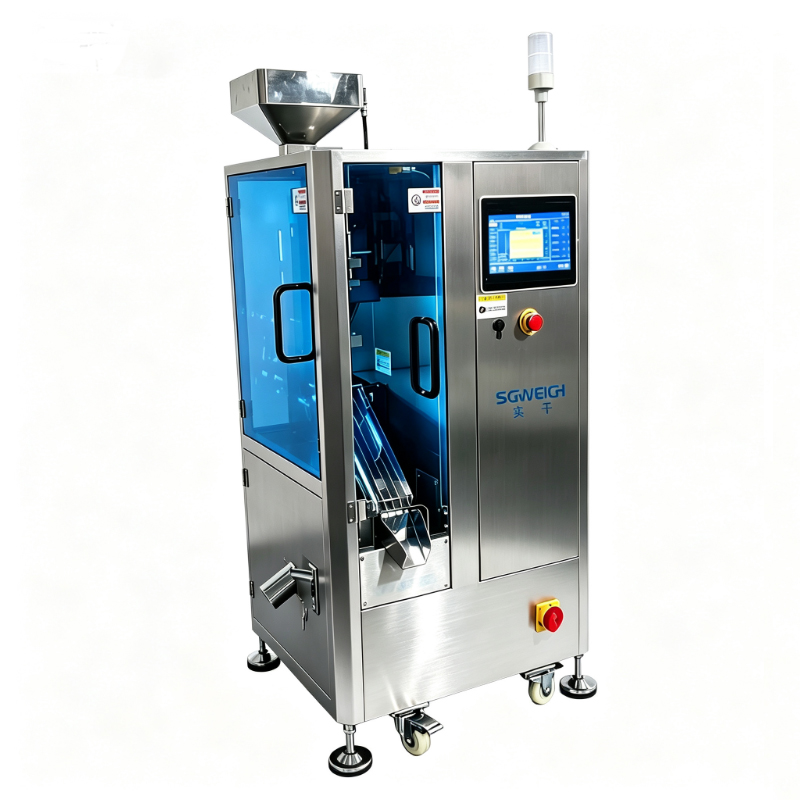

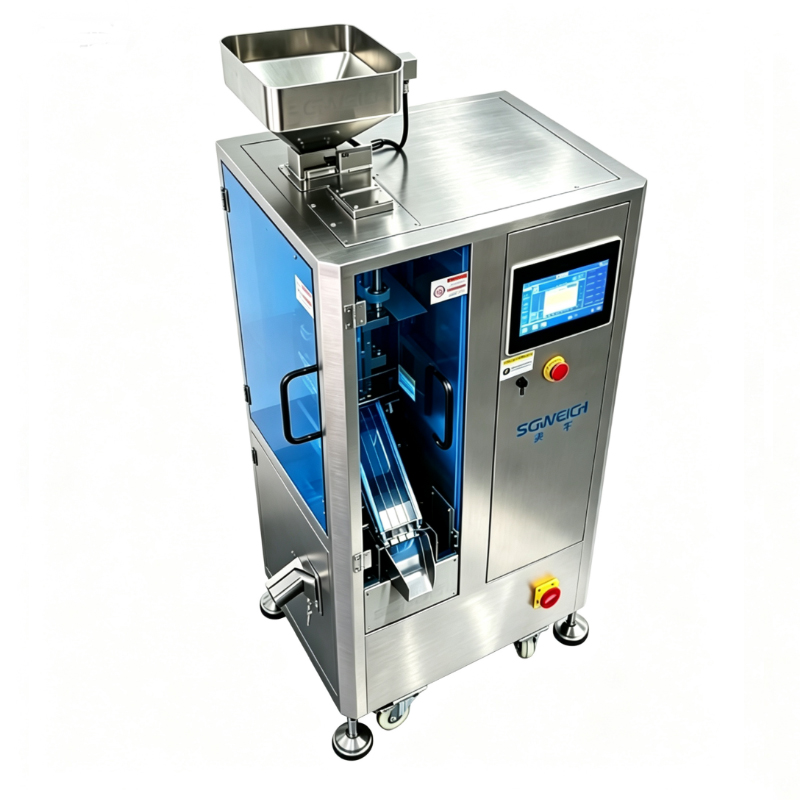

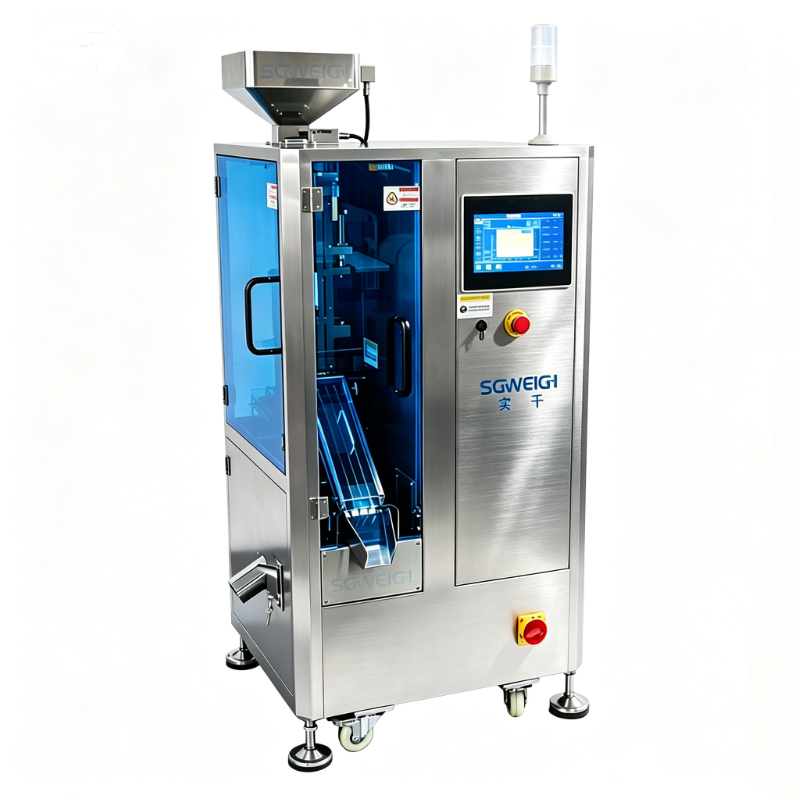

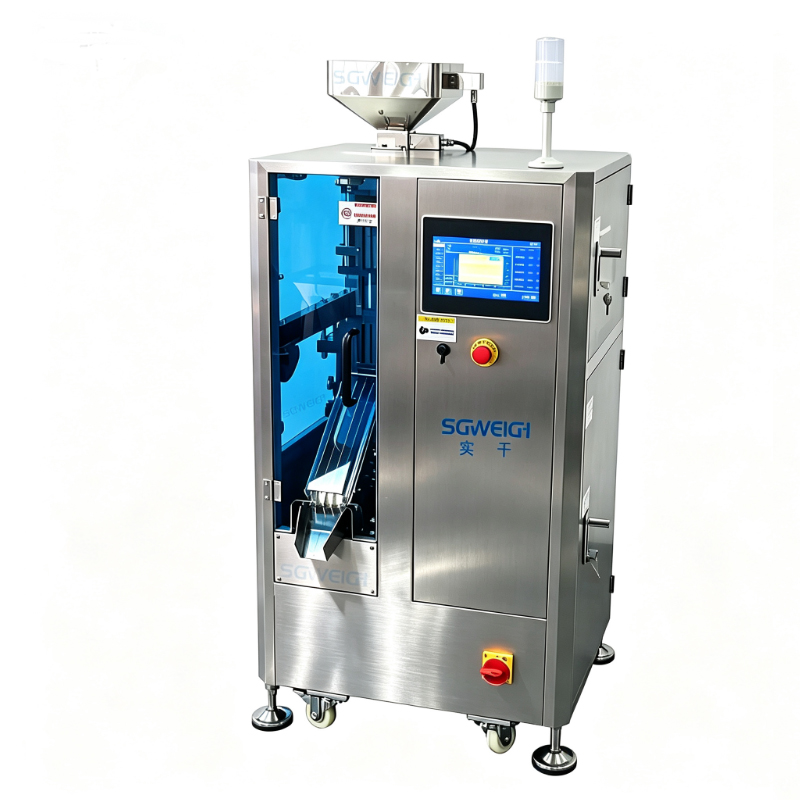

Pharma checkweigher for capsule tablet photos
Type：SG-JN10/SG-JN20/SG-JN30
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
High Precision Pharma Checkweigher for Capsule Tablet with Automatic Rejection
1. High-speed dynamic weighing for capsules and tablets
2. Ultra-high precision weighing with stable repeatability
3. Automatic rejection of underweight and overweight products
4. Compatible with capsules, tablets, softgels, and pills
5. Intelligent touchscreen HMI with multilingual operation
6. Multiple product recipes for quick changeovers
7. High-performance digital load cell technology
8. Stainless steel construction for pharmaceutical hygiene standards
9. Production data recording and statistical analysis
10. Easy integration with pharmaceutical production and packaging lines
11. Engineered for seamless integration with capsule filling machines, tablet presses, blister packaging lines, and bottling systems, this pharmaceutical-grade checkweigher delivers exceptional weighing accuracy while maintaining high production throughput.
Upgrade your pharmaceutical production with a customized capsule tablet checkweigher tailored to your product specifications and production capacity. Contact our experts today for a professional weighing solution that enhances quality, efficiency, and compliance.
This pharma checkweigher for capsule tablet is ideally suited for inspecting hard gelatin capsules, capsules, tablets, low-dose solid dosage forms, vitamins, and various pharmaceutical products, meeting the rigorous demands for precision, speed, and reliability in modern capsule and tablet production.
High Precision Pharma Checkweigher for Capsule Tablet with Automatic Rejection
Free export fumigation plywood box with quick connection design, easy to open and reuse;
Internal plastic film packaging can protect goods from salt, wind, or damage;
1. Warranty: Our packaging machines come with a 12-month warranty. Most components (PLC, servo controllers, servo motors, touch screens, pneumatic cylinders) are covered for free replacement.
2. After-sales Service: One-year warranty and lifetime maintenance.
3. Technical Support: Provide technical consultation before orders are placed, including specifications, custom design solutions, and technical problem analysis and resolution.
4. Operation Training: Welcome customer technicians to our factory to learn the operation process, take photos, and record videos.
